Majan Switchgear Co. LLC.

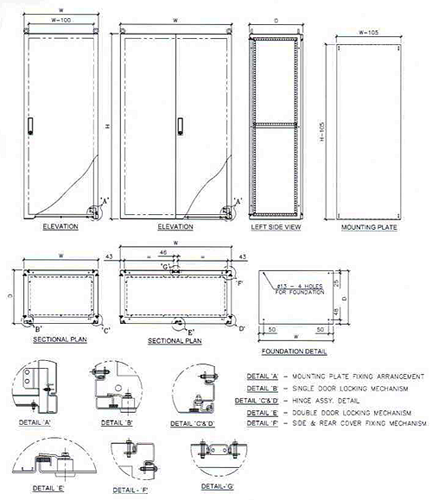

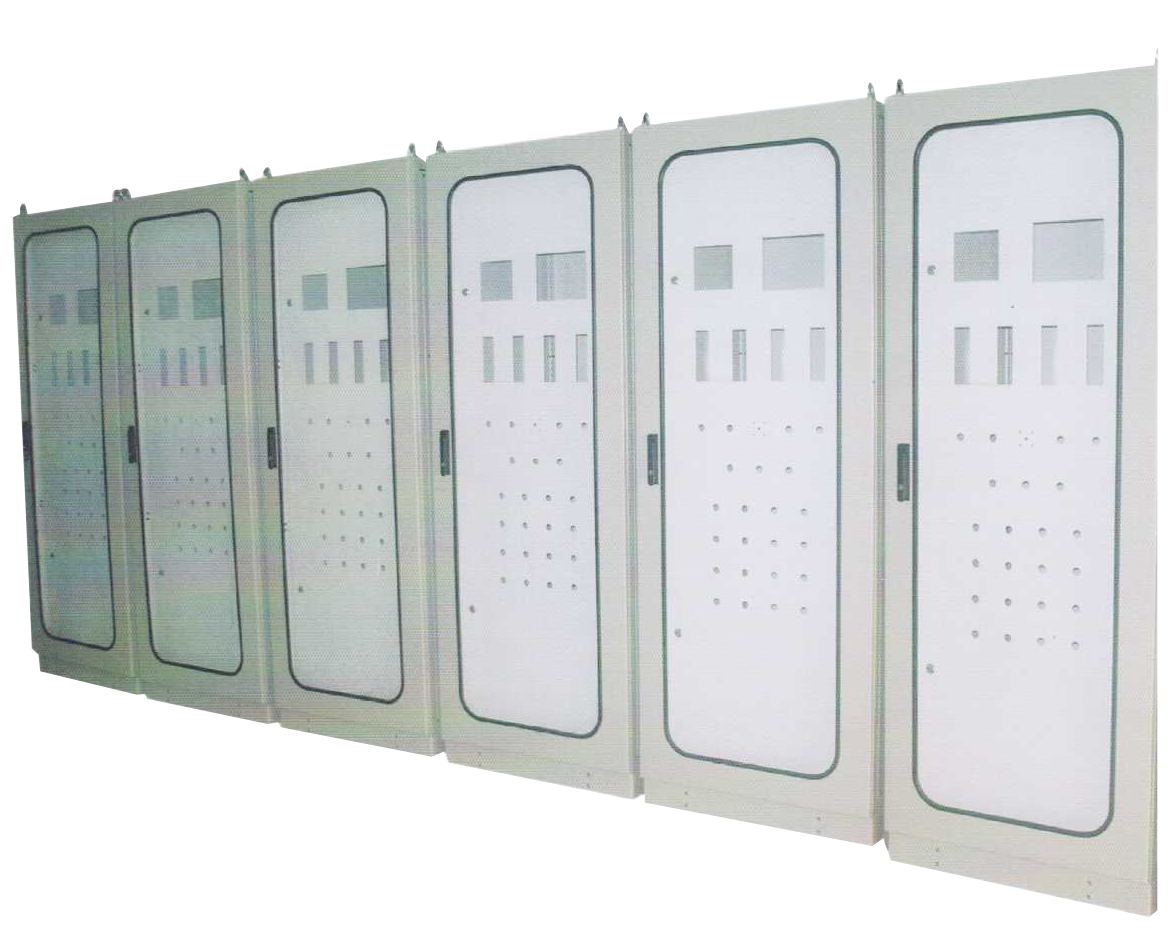

Extendable Type Enclosures



  • Designed to provide IP 55
  • Cubicles for diverse applications:
    (Relay panels, control panels, busbar protection panels,
  • Rigid folded frames with provision for extension on either side
  • Frames with slotted holes for mounting of channels
  • Rigid doors with special hinges ensuring 120 degree openability.
  • 3 Point locking system with swing handle
  • EPDM gaskets provided all round the door
  • Doors reinforced with perforated stiffeners
  • Removable side covers
  • M12 eyebolts provided for lifting
Colour :
  • Powder coated RAL 7032 matt texture finish.
  • Mounting plate: Powder coated RAL 2000, semi glossy finish.
  • Customized designs and colours available on request.
