Majan Switchgear Co. LLC.

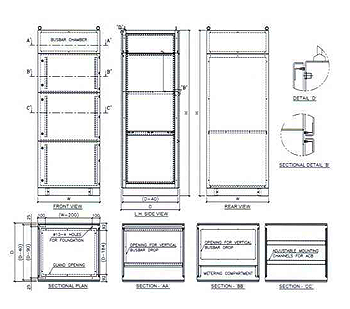

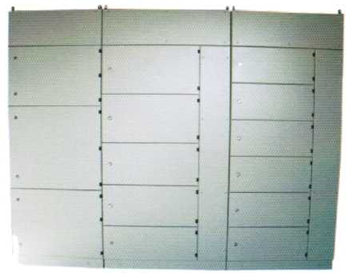

Form IV Enclosures






  • Designed to provide IP 54
  • Designed range based on busbar and cable chamber configuration and top or bottom busbar run
  • Can be offered in form III or Form Iv type A, B OR C contructions
  • 180 degree openability for doors
  • Twin bit tocks provided for doors
  • Ventilation louvers option available
Colour :
  • Powder coated RAL 7032 matt texture finish.
Thickness:
  • Frame,doors and covers: 2mm Sheet steel
  • All internal partiotions: 1.2/1.5mm sheet steel
  • Glazed front door with toughened glass
Customization provided for the following options as per project requirement :

Sheet steel thickness / colour shades /door handles / modular cable entry boxes for the cable chamber based on the form of separation.
