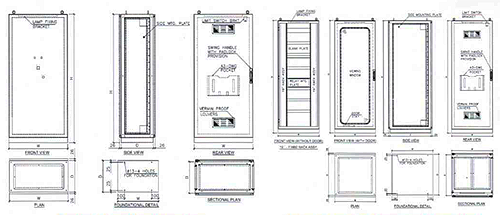

Extendable Type Enclosures For control & Relay Panels
- Designed to provide IP 52
- Frame, front cover/door, rear cover/door, top cover -
2.5mm sheet> steel; Mounting plate / plinth
- 3mm sheet steel - Rigid doors with special hinges ensuring 120
degree openability - 3 Point locking system with swing handle and padlock
provision (optional) - EPDM gaskets provided all round the door
- Door limit switch bracket provided on rear door
- Lamp fixing bracket provided on top cover
- Vermin proof louvers provided on rear door
- M12 eyebolts provided for lifting
Optional Features:
- Dead front
- Rear door or removable cover
- Glazed front door with toughened glass
- 19" sub rack frame - fixed and swing type
- Front inner cover
- Side mounting plates
- 19" blanking plates and rack plates (1U, 2U, 3U, 4U and 5U)
Colour :
- Powder coated RAL 7032 matt texture finish.
- Mounting plate: Powder coated RAL 7032 / RAL 9003 / RAL 9010
(as per customer requirement) - Plinth: Black

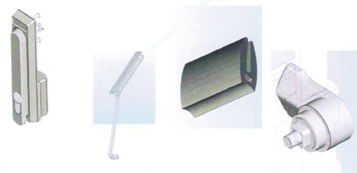

World'z renowed brands are used for components like hinges, handlesm doorstoppers,edge protection gasekets and other accessoriesfor Control & Relay panel enclosures. Sourced from acclaimed suppliers from Europe and the Far East, they come with the guarantee of excellent and enduring performance.
